Automatic Hospital Doors
Deutschtec RV320 and RV420 are chic and eye-pleasing solutions which also offer the highest levels of energy-saving by reducing energy exchange between the inside and outside of buildings. Deutschtec Revolvings, which are presented in three and four-winged models, will bring elegance to the entry area of any building and bestow magnificence upon your facade. This marvelous combination of glass and metal together with the advanced technology we have made use of, creates a breathtaking first impression. Having met all safety requirements and standards, RV320 and RV420 guarantee your maximum security indefinitely.
Product Description
Standards | Hermetic |
Complient with German standard DIN18650 | ✓ |
Compliant with EU standard EN16005 | ✓ |
Compliant with EU standard EN 60335 |
✓ |
Compliant with EU standard EN ISO 13849-1 |
✓ |
Compliant with EU low-voltage directives |
✓ |
Compliant with EU EMC directives |
✓ |
Manufactured according to ISO 9001 |
✓ |
Tested and classified based on NF EN 12207 | ✓ |
Tested and classified based on NF EN 1026 | ✓ |
Tested and classified based on DIN EN 20 140-3 | ✓ |
Technical Data | |
Opening width – single panel | up to 3000 mm |
Max leaf weight, single | 1× 200 kg/ 2× 100 kg |
Max Opening height | up to 3000 mm |

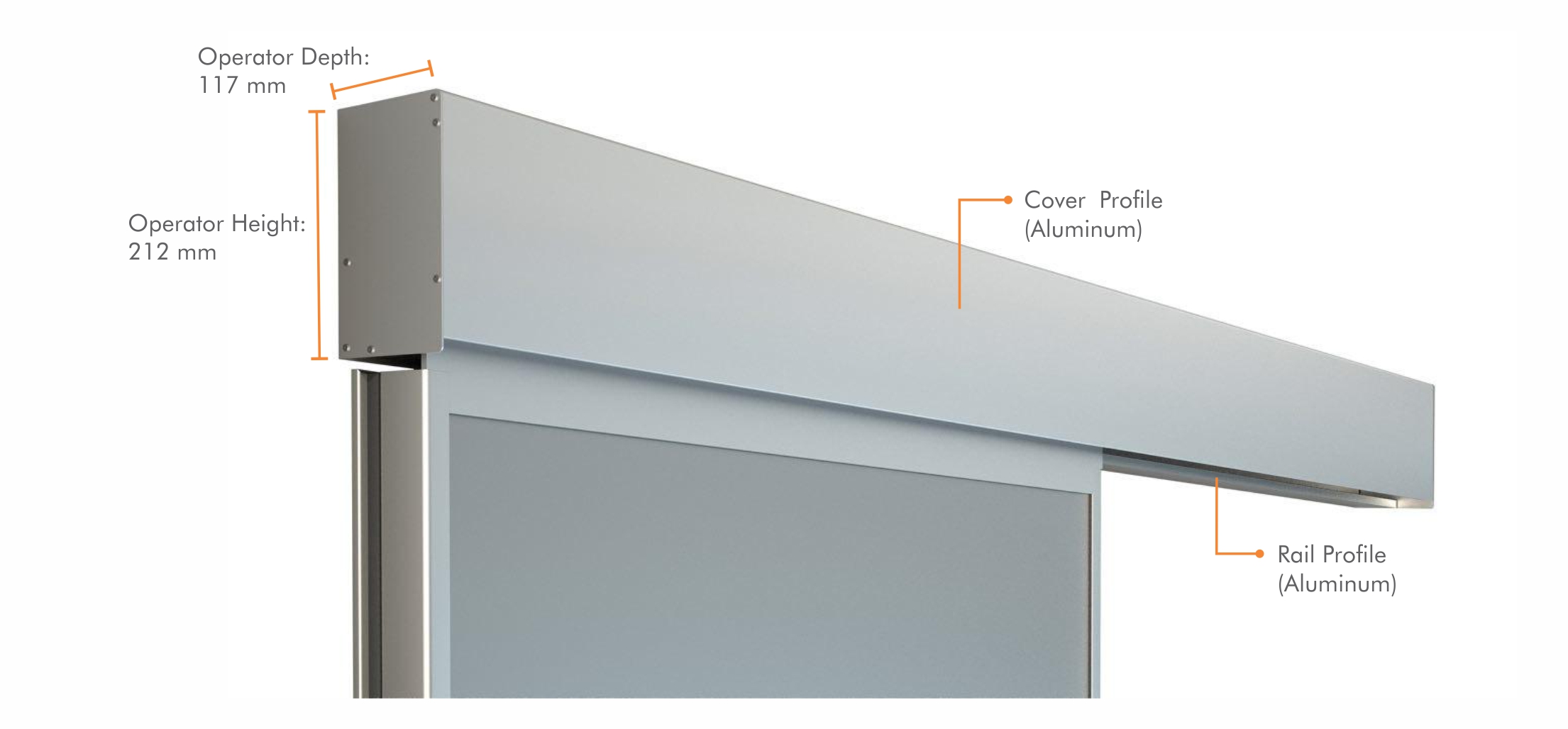

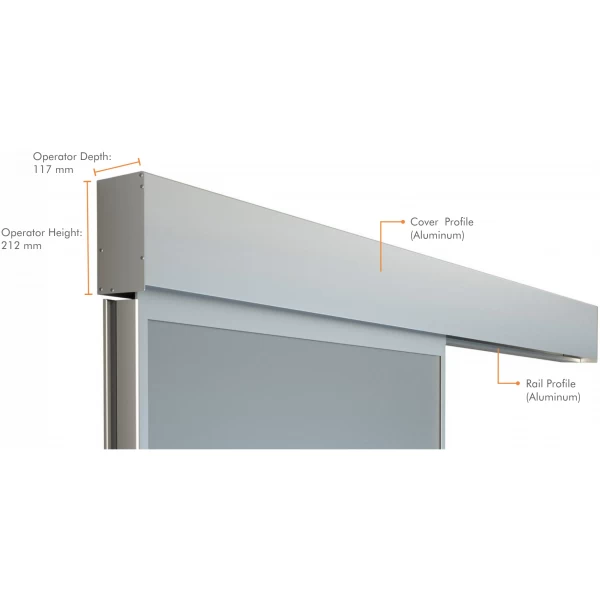

Operator height | 212 mm |
Operator depth | 117 mm |
Opening speed | Adjustable from 0.1 – 0.4 m/s |
Closing speed | Adjustable from 0.1 – 0.4 m/s |
Hold-open time | 0 – 30 s |
Ambient temperature | -15 to +50°C |
Protection class | IP20 |
Max power consumption | 250 W |
Possibility to use safety sensors with testing signal |
✓ |
Possibility to adjust force limitation according to DIN18650 & EN 16005 |
✓ |
Floor guides | Reinforced plastic guides |
Sealing frame | Aluminum |
power supply power | 230V/33V,50VA(Peak 120VA) |
