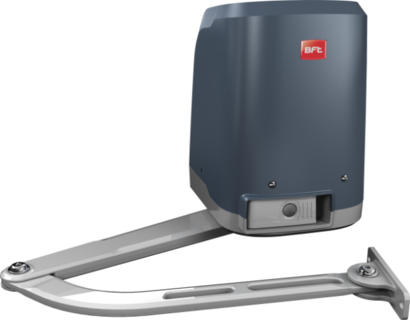

Virgo Smart BT A20 Slave

Virgo Smart BT A20 Slave

Non-reversible 24 V electro-mechanical operator for swing gates weighing up to 200 kg and up to 2 m long, with integrated control unit.

Brand

Brand

BFT

Rise tab
SKU: P930129 00002 Category: Tag:

Product Description

Control unit THALIA
Board power supply 230 V
Motor voltage 24 V
Power consumption 110 W
Max. width of door/gate wing 2 m
Max. weight of door/gate wing 200 kg
Maximum angle 120 °
Cycle time 14 s
Type of limit switch Electromechanical
Slowdown Yes
Locking Mechanical
Release Personal key
Impact reaction Electronic torque limiter
Frequency of use Semi intensive
Protection rating IP44
Environmental conditions -20 ÷ 55 °C
Interconnectivity Yes
