twist UG set 2-leaf DIN left

twist UG set 2-leaf DIN left

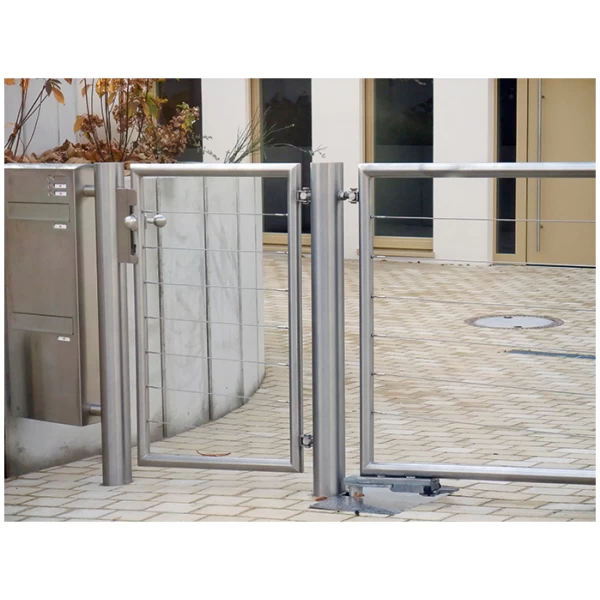

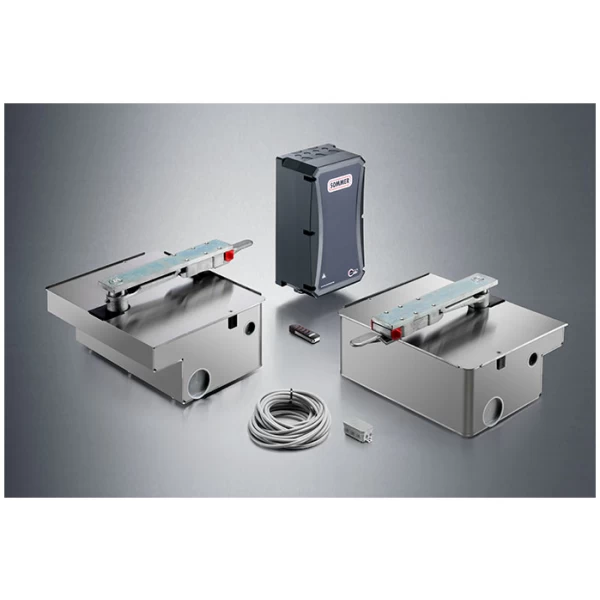

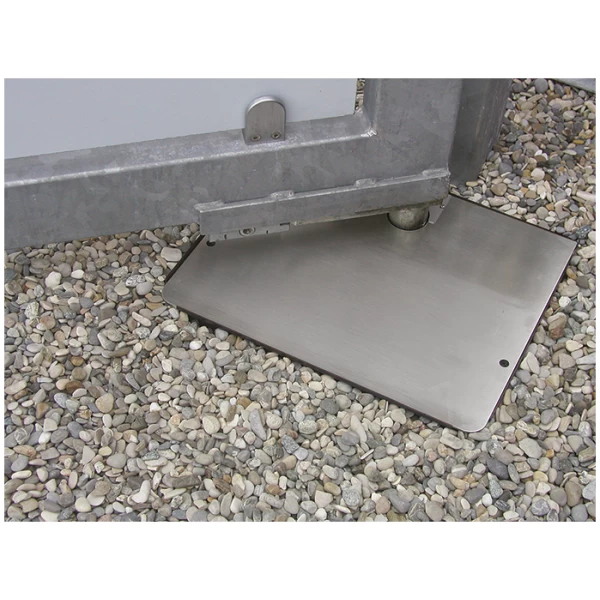

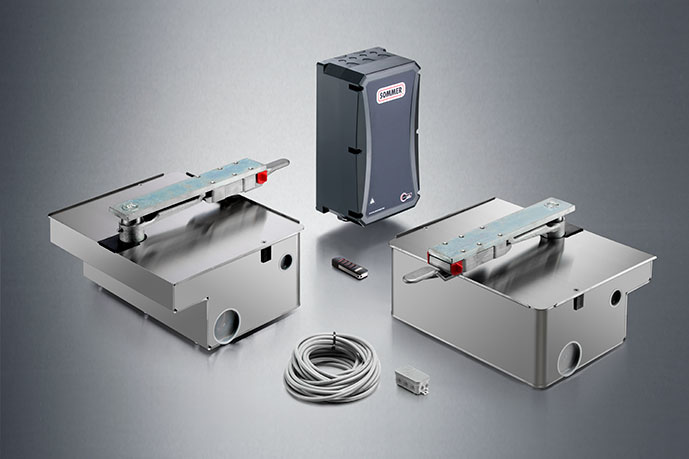

twist UG set for 2-wing swing gates

  • 1 twist UG DIN left
  • 1 twist UG DIN right
  • 1 control unit
  • 1 connecting cable set
  • 1 “Pearl Vibe” transmitter
Brand

Brand

Sommer

Rise tab
SKU: S10605-00001 Category: Tag:

Product Description

Designation twist UG twist UG+
Gate weight per leaf max. 350 kg 1), 2) max. 600 kg 1), 3)
Gate width per leaf max. 3,500 mm 1), 2) max. 3,500 mm 1), 3)
Gate inclination
Gate filling max. 90% closed (depending on the width and height of the gate) max. 90% closed (depending on the width and height of the gate)
Operator principle Electromechanical swing gate operator Electromechanical swing gate operator
Housing stainless steel or hot-dip galvanised finish stainless steel or hot-dip galvanised finish
motor high-quality DC gear motor with hall sensor high-quality DC gear motor with hall sensor
Motor safety device via microprocessor, power-monitored via microprocessor, power-monitored
Motor control unit twist UG DT-C-1 twist UG DT-C-1
Voltage supply AC 220–240 V, 50/60 Hz / Motor voltage DC 24 V AC 220–240 V, 50/60 Hz / Motor voltage DC 24 V
Angular velocity 10°/s 10°/s
max. opening angle 105° 105°
Accident prevention through automatic obstacle detection through automatic obstacle detection
Limit switch Path measurement Path measurement
Emergency release on the operator; secured with a lock, simple operation on the operator; secured with a lock, simple operation
Soft start / soft stop Controlled soft run in ramp form without power loss Controlled soft run in ramp form without power loss
Automatic closing function can be set via DIP switch can be set via DIP switch
Dead-man function Yes Yes
Walk-through door function Yes Yes
Pulse mode OPEN / STOP / CLOSE / STOP /…, defined OPEN/CLOSE can be set OPEN / STOP / CLOSE / STOP /…, defined OPEN/CLOSE can be set
Close sequence self-learning self-learning
Number of radio channels 4 4
Operating mode S3  40% S3  40%
Protection class Operator: IP67 / Control unit: IP65 Operator: IP67 / Control unit: IP65
Temperature range -25 °C to +65 °C -25 °C to +65 °C
