Automatic sliding door

  1. Home
  2. Door Systems

Automatic sliding door

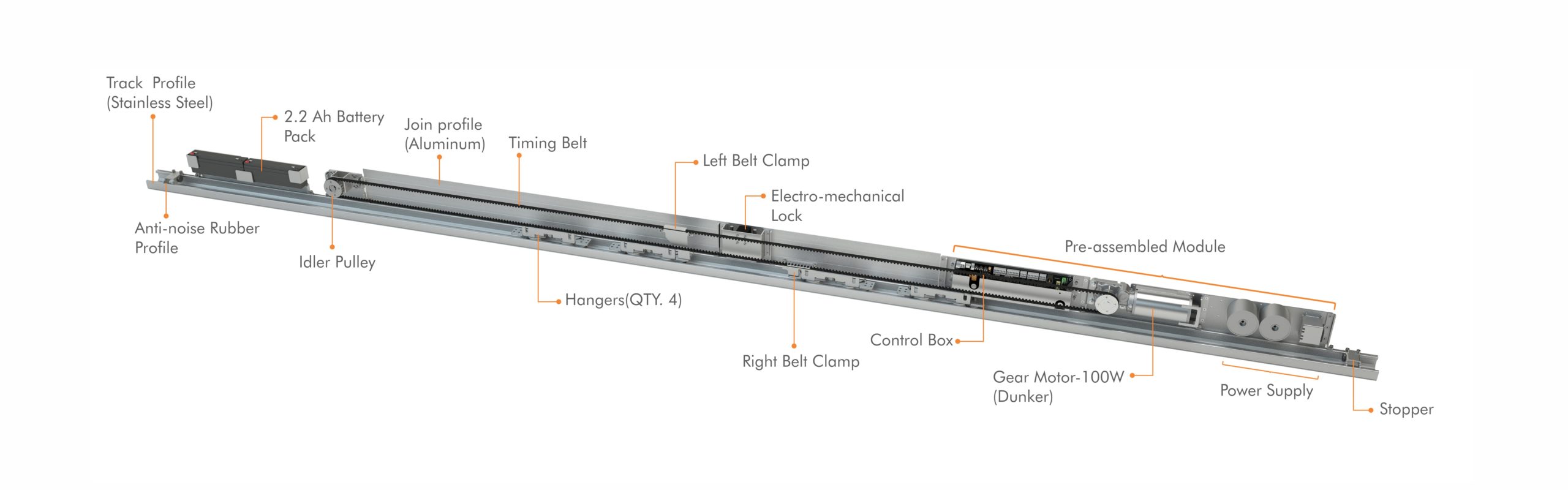

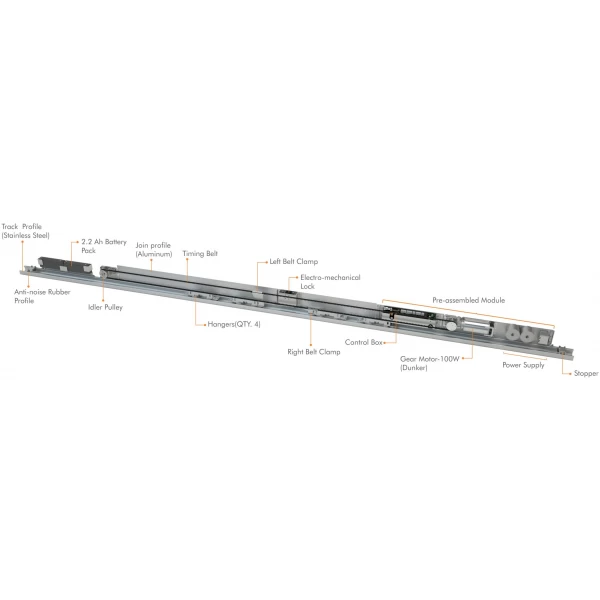

68mm*135mm – the tiniest operator available in the world market. In spite of owning a 100W motor and handling a weight of 120kg for each leaf, this fabulous operator has an absolutely low operator height and unbelievably low depth.

Brand

Brand

Deutschtec

Rise tab
SKU: P940080 00002-1 Category: Tag:

Product Description

Standards Airdrive68PR
DIN18650 ✓
EN16005 ✓
EN60335 ✓
EN ISO 13849 ✓
EU low voltage directives ✓
EU EMC directives ✓
ISO 9001 ✓
TÜV approved —
CE conformity ✓
1.000.000 cycles durability test ✓
Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single,SS track 1 x 150 kg
Max leaf weight, double,SS track 2 x 135 kg
Max leaf weight, single,AL track 1 x 140 kg
Max leaf weight, double,AL track  2 x 120 kg

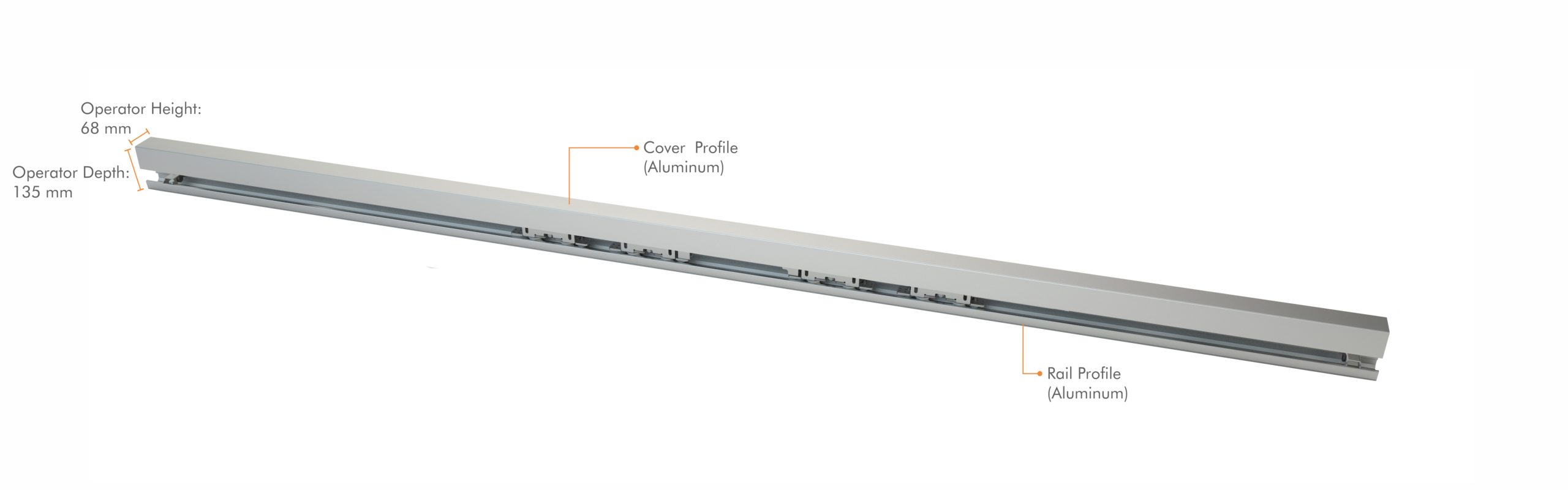

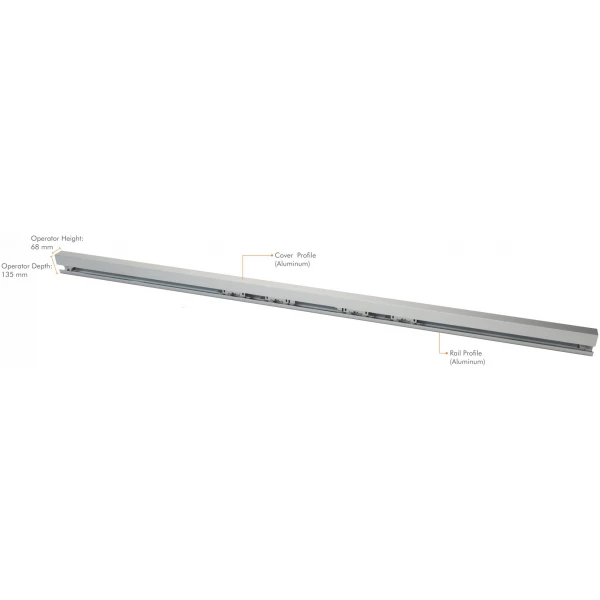

Operator height 68 mm
Operator depth 135 mm
Opening speed Variable up to 0.9 m/s

(Double leaves)
Closing speed Variable up to 0.9 m/s

(Double leaves)
Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20
100% German-made operator kit ✓
Control unit origin German
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel/Aluminium
Anti-noise rubber profile ✓
Gear motor power 100W
Second motor for emergency opening —
Dual gear motor and control unit set for master and slave concept —
No. of hanger per leaf 2
Power supply power 230V/24V,130 VA
Back-up battery for emergency opening —
Possibility to use safety sensors with testing signal ✓
24V DC output for external accessories ✓
Power lock ✓
Lock monitoring ✓
Possibility of using more software and hardware options by using DEAP device (optional) ✓
Read-out error memory with error codes (with digital programme switch) ✓
Programmable output (optional) ✓
Programmable input (optional) ✓
Possibility of using mechanical key switch(optional) ✓
Possibility of using Digital programme switch (optional) ✓
Possibility of using electro-mechanical lock (optional) ✓
Possibility of using HSML lock —
Possibility of using Battery ✓
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional) —
Frames ✓
Thermal break Air-TBS ✓
Thermal break TBS ✓
UTS ✓
Saturn ✓
Frameless ✓
THB —
